Gst::MiniObject Class Reference

This is a base class for some gstreamermm objects. More...

#include <gstreamermm/miniobject.h>

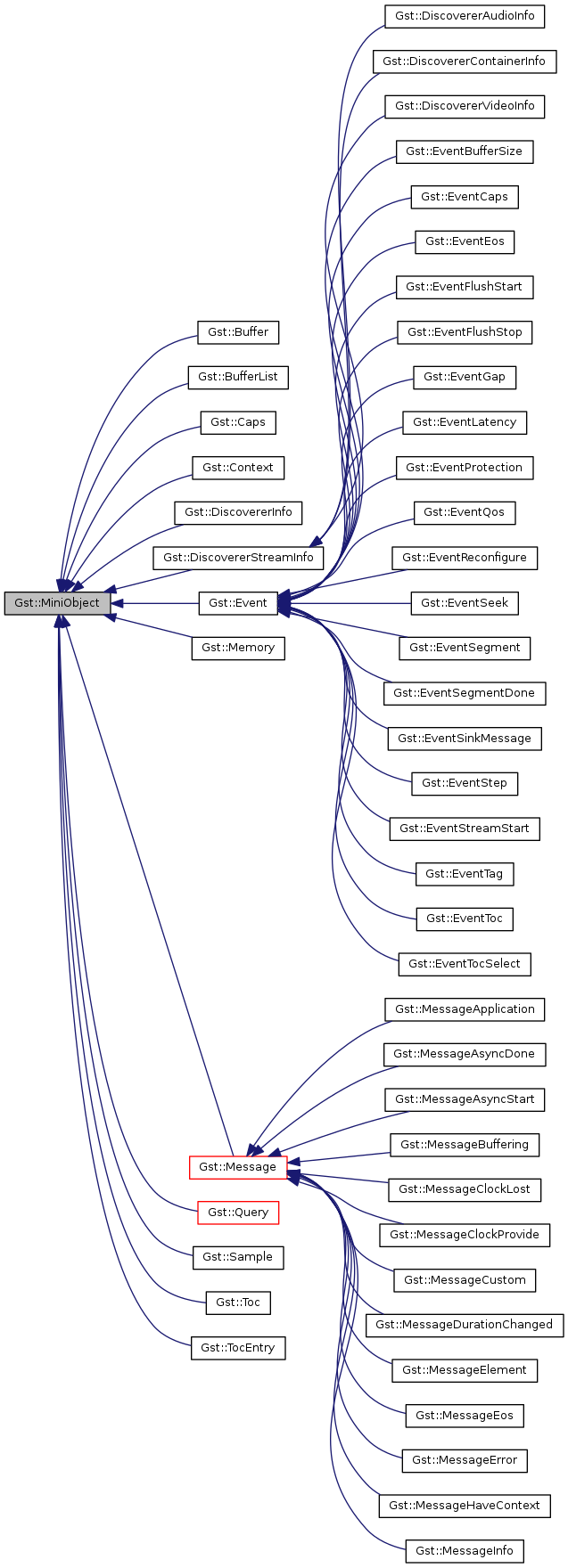

Inheritance diagram for Gst::MiniObject:

Public Types
typedef sigc::slot< void >	SlotFinalizer

Public Member Functions
void	reference () const
	Increment the reference count for this object. More...
void	unreference () const
	Decrement the reference count for this object. More...
GstMiniObject*	gobj ()
	Provides access to the underlying C instance. More...
const GstMiniObject*	gobj () const
	Provides access to the underlying C instance. More...
GstMiniObject*	gobj_copy () const
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...
	MiniObject ()=delete
	MiniObject (const MiniObject&)=delete
MiniObject&	operator= (const MiniObject&)=delete
	~MiniObject ()
guint	get_flags () const
void	set_flags (const guint& value)
gint	get_refcount () const
gint	get_lockstate () const
bool	lock (LockFlags flags)
	Lock the mini-object with the specified access mode in flags. More...
void	unlock (LockFlags flags)
	Unlock the mini-object with the specified access mode in flags. More...
bool	is_writable () const
	If mini_object has the LOCKABLE flag set, check if the current EXCLUSIVE lock on object is the only one, this means that changes to the object will not be visible to any other object. More...
Glib::RefPtr< MiniObject >	create_writable ()
	Checks if a mini-object is writable. More...
void	set_qdata (GQuark quark, QuarkData* data)
	This sets an opaque, named pointer on a miniobject. More...
QuarkData*	get_qdata (GQuark quark) const
	This function gets back user data pointers stored via set_qdata(). More...
QuarkData*	steal_qdata (GQuark quark)
	This function gets back user data pointers stored via set_qdata() and removes the data from object without invoking its destroy() function (if any was set). More...
void	add_finalize_notifier (const SlotFinalizer& slot)
	Adds notifier when mini object is finalized. More...
void	remove_finalize_notifier ()
	Remove finalize notifier. More...

Protected Member Functions
void	operator delete (void*, std::size_t)

Related Functions
(Note that these are not member functions.)
Glib::RefPtr< Gst::MiniObject >	wrap (GstMiniObject* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Detailed Description

This is a base class for some gstreamermm objects.

It is similar to Glib::Object but has no GObject property or signal support.

Member Typedef Documentation

SlotFinalizer

typedef sigc::slot< void > Gst::MiniObject::SlotFinalizer

Constructor & Destructor Documentation

MiniObject() [1/2]

Gst::MiniObject::MiniObject ( )

delete

MiniObject() [2/2]

Gst::MiniObject::MiniObject ( const MiniObject&  )

delete

~MiniObject()

Gst::MiniObject::~MiniObject

(

)

Member Function Documentation

add_finalize_notifier()

void Gst::MiniObject::add_finalize_notifier

(

const SlotFinalizer&

slot

)

Adds notifier when mini object is finalized.

Parameters

slot

notifier.

create_writable()

Glib::RefPtr<MiniObject> Gst::MiniObject::create_writable

(

)

Checks if a mini-object is writable.

If not, a writable copy is made and returned. This gives away the reference to the original mini object, and returns a reference to the new object.

MT safe

Returns

A mini-object (possibly the same pointer) that is writable.

get_flags()

guint Gst::MiniObject::get_flags

(

)

const

get_lockstate()

gint Gst::MiniObject::get_lockstate

(

)

const

get_qdata()

QuarkData* Gst::MiniObject::get_qdata

(

GQuark

quark

)

const

This function gets back user data pointers stored via set_qdata().

Parameters

quark

a GQuark, naming the user data pointer.

Returns

the user data pointer set, or NULL.

get_refcount()

gint Gst::MiniObject::get_refcount

(

)

const

gobj() [1/2]

GstMiniObject* Gst::MiniObject::gobj

(

)

Provides access to the underlying C instance.

gobj() [2/2]

const GstMiniObject* Gst::MiniObject::gobj

(

)

const

Provides access to the underlying C instance.

gobj_copy()

GstMiniObject* Gst::MiniObject::gobj_copy

(

)

const

Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.

is_writable()

bool Gst::MiniObject::is_writable

(

)

const

If mini_object has the LOCKABLE flag set, check if the current EXCLUSIVE lock on object is the only one, this means that changes to the object will not be visible to any other object.

If the LOCKABLE flag is not set, check if the refcount of mini_object is exactly 1, meaning that no other reference exists to the object and that the object is therefore writable.

Modification of a mini-object should only be done after verifying that it is writable.

Returns

true if the object is writable.

lock()

bool Gst::MiniObject::lock

(

LockFlags

flags

)

Lock the mini-object with the specified access mode in flags.

Parameters

flags

Gst::LockFlags.

Returns

true if object could be locked.

operator delete()

void Gst::MiniObject::operator delete ( void *  , std::size_t    )

protected

operator=()

MiniObject& Gst::MiniObject::operator= ( const MiniObject&  )

delete

reference()

void Gst::MiniObject::reference

(

)

const

Increment the reference count for this object.

You should never need to do this manually - use the object via a RefPtr instead.

remove_finalize_notifier()

void Gst::MiniObject::remove_finalize_notifier

(

)

Remove finalize notifier.

set_flags()

void Gst::MiniObject::set_flags

(

const guint &

value

)

set_qdata()

void Gst::MiniObject::set_qdata	(	GQuark	quark,
		QuarkData*	data
	)

This sets an opaque, named pointer on a miniobject.

The name is specified through a #GQuark (retrived e.g. via g_quark_from_static_string()), and the pointer can be gotten back with get_qdata(). Setting a previously set user data pointer, overrides (frees) the old pointer set, using NULL as pointer essentially removes the data stored.

Parameters

quark	a GQuark, naming the user data pointer.
data	an opaque user data pointer.

steal_qdata()

QuarkData* Gst::MiniObject::steal_qdata

(

GQuark

quark

)

This function gets back user data pointers stored via set_qdata() and removes the data from object without invoking its destroy() function (if any was set).

Parameters

quark

A Quark, naming the user data pointer.

Returns

The user data pointer set, or nullptr.

unlock()

void Gst::MiniObject::unlock

(

LockFlags

flags

)

Unlock the mini-object with the specified access mode in flags.

Parameters

flags

Gst::LockFlags.

unreference()

void Gst::MiniObject::unreference

(

)

const

Decrement the reference count for this object.

You should never need to do this manually - use the object via a RefPtr instead.

Friends And Related Function Documentation

wrap()

Glib::RefPtr< Gst::MiniObject > wrap ( GstMiniObject *  object, bool  take_copy = false  )

related

A Glib::wrap() method for this object.

Parameters

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns

A C++ instance that wraps this C instance.
