A base class for anything that can be added to a Gst::Plugin. More...

#include <gstreamermm/pluginfeature.h>

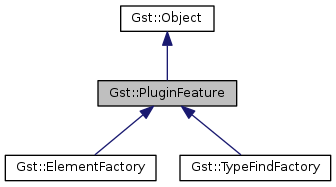

Inheritance diagram for Gst::PluginFeature:

Public Types
typedef sigc::slot< bool, const Glib::RefPtr< Gst::PluginFeature >&>	SlotFilter
	For example, bool on_filter(const Glib::RefPtr<Gst::PluginFeature>& feature);. More...

Public Member Functions
	PluginFeature (PluginFeature&& src) noexcept

PluginFeature&	operator= (PluginFeature&& src) noexcept

	~PluginFeature () noexcept override

GstPluginFeature*	gobj ()
	Provides access to the underlying C GObject. More...

const GstPluginFeature*	gobj () const
	Provides access to the underlying C GObject. More...

GstPluginFeature*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

void	set_rank (guint rank)
	Specifies a rank for a plugin feature, so that autoplugging uses the most appropriate feature. More...

guint	get_rank () const
	Gets the rank of a plugin feature. More...

Glib::RefPtr< Gst::PluginFeature >	load ()
	Loads the plugin containing feature if it's not already loaded. More...

Glib::RefPtr< Gst::Plugin >	get_plugin () const
	Get the plugin that provides this feature. More...

Glib::ustring	get_plugin_name () const
	Get the name of the plugin that provides this feature. More...

bool	check_version (guint min_major, guint min_minor, guint min_micro) const
	Checks whether the given plugin feature is at least the required version. More...

Public Member Functions inherited from Gst::Object
	Object (Object&& src) noexcept

Object&	operator= (Object&& src) noexcept

	~Object () noexcept override

GstObject*	gobj ()
	Provides access to the underlying C GObject. More...

const GstObject*	gobj () const
	Provides access to the underlying C GObject. More...

GstObject*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

bool	is_element () const

bool	is_element_factory () const

bool	is_pad () const

bool	is_pad_template () const

bool	is_bin () const

guint32	get_flags () const
	Returns the entire set of flags for the object. More...

bool	set_name (const Glib::ustring& name)
	Sets the name of object, or gives object a guaranteed unique name (if name is `nullptr`). More...

Glib::ustring	get_name () const
	Returns a copy of the name of object. More...

bool	set_parent (const Glib::RefPtr< Gst::Object >& parent)
	Sets the parent of object to parent. More...

Glib::RefPtr< Gst::Object >	get_parent ()
	Returns the parent of object. More...

Glib::RefPtr< const Gst::Object >	get_parent () const
	Returns the parent of object. More...

void	unparent ()
	Clear the parent of object, removing the associated reference. More...

void	set_control_rate (Gst::ClockTime control_rate)
	Change the control-rate for this object. More...

Gst::ClockTime	get_control_rate () const
	Obtain the control-rate for this object. More...

Gst::ClockTime	suggest_next_sync () const
	Returns a suggestion for timestamps where buffers should be split to get best controller results. More...

bool	sync_values (Gst::ClockTime timestamp)
	Sets the properties of the object, according to the Gst::ControlSources that (maybe) handle them and for the given timestamp. More...

void	set_control_bindings_disabled (bool disabled)
	This function is used to disable all controlled properties of the object for some time, i.e. sync_values() will do nothing. More...

bool	has_asctive_control_bindings () const
	Check if the object has an active controlled properties. More...

bool	has_ancestor (const Glib::RefPtr< const Gst::Object >& ancestor) const
	Check if object has an ancestor ancestor somewhere up in the hierarchy. More...

bool	has_as_ancestor (const Glib::RefPtr< Gst::Object >& ancestor) const
	Check if object has an ancestor ancestor somewhere up in the hierarchy. More...

bool	has_as_parent (const Glib::RefPtr< Gst::Object >& parent) const
	Check if parent is the parent of object. More...

Glib::ustring	get_path_string ()
	Generates a string describing the path of object in the object hierarchy. More...

Glib::PropertyProxy< Glib::ustring >	property_name ()
	The name of the object. More...

Glib::PropertyProxy_ReadOnly< Glib::ustring >	property_name () const
	The name of the object. More...

Glib::PropertyProxy< Glib::RefPtr< Gst::Object > >	property_parent ()
	The parent of the object. More...

Glib::PropertyProxy_ReadOnly< Glib::RefPtr< Gst::Object > >	property_parent () const
	The parent of the object. More...

Glib::SignalProxy< void, const Glib::RefPtr< Gst::Object >&, GParamSpec*>	signal_deep_notify ()

int	get_refcount () const

Static Public Member Functions
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

Static Public Member Functions inherited from Gst::Object
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

static bool	check_uniqueness (const Glib::ListHandle< const Gst::Object >& list, const Glib::ustring& name)
	Checks to see if there is any object named name in list. More...

Related Functions
(Note that these are not member functions.)
Glib::RefPtr< Gst::PluginFeature >	wrap (GstPluginFeature* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Related Functions inherited from Gst::Object
Glib::RefPtr< Gst::Object >	wrap (GstObject* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Additional Inherited Members
Protected Member Functions inherited from Gst::Object
virtual void	on_deep_notify (const Glib::RefPtr< Gst::Object >& prop_object, GParamSpec* prop)
	This is a default handler for the signal signal_deep_notify(). More...

Detailed Description

A base class for anything that can be added to a Gst::Plugin.

Last reviewed on 2016-06-06 (1.8.0)

Member Typedef Documentation

◆ SlotFilter

typedef sigc::slot< bool, const Glib::RefPtr<Gst::PluginFeature>& > Gst::PluginFeature::SlotFilter

For example, bool on_filter(const Glib::RefPtr<Gst::PluginFeature>& feature);.

The filter function should return true if the feature is a match, false otherwise.

Constructor & Destructor Documentation

◆ PluginFeature()

Gst::PluginFeature::PluginFeature ( PluginFeature&& src )

noexcept

◆ ~PluginFeature()

Gst::PluginFeature::~PluginFeature ( )

overridenoexcept

Member Function Documentation

◆ check_version()

bool Gst::PluginFeature::check_version	(	guint	min_major,
		guint	min_minor,
		guint	min_micro
	)		const

Checks whether the given plugin feature is at least the required version.

Parameters

min_major	Minimum required major version.
min_minor	Minimum required minor version.
min_micro	Minimum required micro version.

Returns: true if the plugin feature has at least the required version, otherwise false.

◆ get_plugin()

Glib::RefPtr<Gst::Plugin> Gst::PluginFeature::get_plugin ( ) const

Get the plugin that provides this feature.

Returns: The plugin that provides this feature, or nullptr. Unref with Gst::Object::unref() when no longer needed.

◆ get_plugin_name()

Glib::ustring Gst::PluginFeature::get_plugin_name ( ) const

Get the name of the plugin that provides this feature.

Returns: The name of the plugin that provides this feature, or nullptr if the feature is not associated with a plugin.

◆ get_rank()

guint Gst::PluginFeature::get_rank ( ) const

Gets the rank of a plugin feature.

Returns: The rank of the feature.

◆ get_type()

static GType Gst::PluginFeature::get_type ( )

static

Get the GType for this class, for use with the underlying GObject type system.

◆ gobj() [1/2]

GstPluginFeature* Gst::PluginFeature::gobj ( )

inline

Provides access to the underlying C GObject.

◆ gobj() [2/2]

const GstPluginFeature* Gst::PluginFeature::gobj ( ) const

inline

Provides access to the underlying C GObject.

◆ gobj_copy()

GstPluginFeature* Gst::PluginFeature::gobj_copy ( )

Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.

◆ load()

Glib::RefPtr<Gst::PluginFeature> Gst::PluginFeature::load ( )

Loads the plugin containing feature if it's not already loaded.

feature is unaffected; use the return value instead.

Normally this function is used like this:

[C example ellipted]

Returns: A reference to the loaded feature, or nullptr on error.

◆ operator=()

PluginFeature& Gst::PluginFeature::operator= ( PluginFeature&& src )

noexcept

◆ set_rank()

void Gst::PluginFeature::set_rank ( guint rank )

Specifies a rank for a plugin feature, so that autoplugging uses the most appropriate feature.

Parameters

rank	Rank value - higher number means more priority rank.

Friends And Related Function Documentation

◆ wrap()

Glib::RefPtr< Gst::PluginFeature > wrap	(	GstPluginFeature *	object,
		bool	take_copy = `false`
	)

Parameters

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns: A C++ instance that wraps this C instance.
