The base class for audio sinks. More...

#include <gstreamermm/audiobasesink.h>

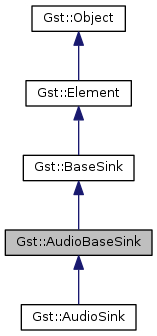

Inheritance diagram for Gst::AudioBaseSink:

[legend]

Public Types
typedef sigc::slot< void, const Glib::RefPtr< Gst::AudioBaseSink >&, Gst::ClockTime, Gst::ClockTime, Gst::ClockTimeDiff&, Gst::AudioBaseSinkDiscontReason >	SlotCustomSlaving
	This slot is set with set_custom_slaving_callback() and is called during playback. More...

Public Member Functions
	AudioBaseSink (AudioBaseSink&& src) noexcept

AudioBaseSink&	operator= (AudioBaseSink&& src) noexcept

	~AudioBaseSink () noexcept override

GstAudioBaseSink*	gobj ()
	Provides access to the underlying C GObject. More...

const GstAudioBaseSink*	gobj () const
	Provides access to the underlying C GObject. More...

GstAudioBaseSink*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

Glib::RefPtr< Gst::Clock >	get_provided_clock ()
	Get the Gst::Clock of the Gst::AudioBaseSink. More...

Glib::RefPtr< const Gst::Clock >	get_provided_clock () const

Glib::RefPtr< Gst::AudioRingBuffer >	create_ring_buffer ()
	Create and return the Gst::AudioRingBuffer for sink. More...

void	set_provide_clock (bool provide)
	Controls whether sink will provide a clock or not. More...

bool	get_provide_clock () const
	Queries whether sink will provide a clock or not. More...

void	set_slave_method (Gst::AudioBaseSinkSlaveMethod method)
	Controls how clock slaving will be performed in sink. More...

Gst::AudioBaseSinkSlaveMethod	get_slave_method () const
	Get the current slave method used by sink. More...

gint64	get_drift_tolerance () const
	Get the current drift tolerance, in microseconds, used by sink. More...

void	set_drift_tolerance (gint64 drift_tolerance)
	Controls the sink's drift tolerance. More...

void	set_discont_wait (Gst::ClockTime discont_wait)
	Controls how long the sink will wait before creating a discontinuity. More...

Gst::ClockTime	get_discont_wait () const
	Get the current discont wait, in nanoseconds, used by sink. More...

void	set_alignment_threshold (Gst::ClockTime alignment_threshold)
	Controls the sink's alignment threshold. More...

Gst::ClockTime	get_alignment_threshold () const
	Get the current alignment threshold, in nanoseconds, used by sink. More...

void	report_device_failure ()
	Informs this base class that the audio output device has failed for some reason, causing a discontinuity (for example, because the device recovered from the error, but lost all contents of its ring buffer). More...

void	set_custom_slaving_callback (const SlotCustomSlaving& slot)
	Sets the custom slaving callback. More...

Glib::PropertyProxy< guint64 >	property_alignment_threshold ()
	Timestamp alignment threshold in nanoseconds. More...

Glib::PropertyProxy_ReadOnly< guint64 >	property_alignment_threshold () const
	Timestamp alignment threshold in nanoseconds. More...

Glib::PropertyProxy< gint64 >	property_buffer_time ()
	Size of audio buffer in microseconds, this is the minimum latency that the sink reports. More...

Glib::PropertyProxy_ReadOnly< gint64 >	property_buffer_time () const
	Size of audio buffer in microseconds, this is the minimum latency that the sink reports. More...

Glib::PropertyProxy< bool >	property_can_activate_pull ()
	Allow pull-based scheduling. More...

Glib::PropertyProxy_ReadOnly< bool >	property_can_activate_pull () const
	Allow pull-based scheduling. More...

Glib::PropertyProxy< guint64 >	property_discont_wait ()
	Window of time in nanoseconds to wait before creating a discontinuity. More...

Glib::PropertyProxy_ReadOnly< guint64 >	property_discont_wait () const
	Window of time in nanoseconds to wait before creating a discontinuity. More...

Glib::PropertyProxy< gint64 >	property_drift_tolerance ()
	Tolerance for clock drift in microseconds. More...

Glib::PropertyProxy_ReadOnly< gint64 >	property_drift_tolerance () const
	Tolerance for clock drift in microseconds. More...

Glib::PropertyProxy< gint64 >	property_latency_time ()
	The minimum amount of data to write in each iteration in microseconds. More...

Glib::PropertyProxy_ReadOnly< gint64 >	property_latency_time () const
	The minimum amount of data to write in each iteration in microseconds. More...

Glib::PropertyProxy< bool >	property_provide_clock ()
	Provide a clock to be used as the global pipeline clock. More...

Glib::PropertyProxy_ReadOnly< bool >	property_provide_clock () const
	Provide a clock to be used as the global pipeline clock. More...

Glib::PropertyProxy< Gst::AudioBaseSinkSlaveMethod >	property_slave_method ()
	Algorithm used to match the rate of the masterclock. More...

Glib::PropertyProxy_ReadOnly< Gst::AudioBaseSinkSlaveMethod >	property_slave_method () const
	Algorithm used to match the rate of the masterclock. More...

virtual Glib::RefPtr< Gst::AudioRingBuffer >	create_ring_buffer_vfunc ()
	vfunc to create and return a Gst::AudioRingBuffer to write to. More...

virtual Glib::RefPtr< Gst::Buffer >	payload_vfunc (const Glib::RefPtr< Gst::Buffer >& buffer)
	vfunc to payload data in a format suitable to write to the sink. More...

Public Member Functions inherited from Gst::BaseSink
	BaseSink (BaseSink&& src) noexcept

BaseSink&	operator= (BaseSink&& src) noexcept

	~BaseSink () noexcept override

GstBaseSink*	gobj ()
	Provides access to the underlying C GObject. More...

const GstBaseSink*	gobj () const
	Provides access to the underlying C GObject. More...

GstBaseSink*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

bool	query_latency (bool& live, bool& upstream_live, Gst::ClockTime& min_latency, Gst::ClockTime& max_latency) const
	Query the sink for the latency parameters. More...

Gst::ClockTime	get_latency () const
	Get the currently configured latency. More...

Gst::FlowReturn	do_preroll (const Glib::RefPtr< Gst::MiniObject >& obj)
	If the sink spawns its own thread for pulling buffers from upstream it should call this method after it has pulled a buffer. More...

Gst::FlowReturn	wait_preroll ()
	If the Gst::BaseSinkClass.render() method performs its own synchronisation against the clock it must unblock when going from PLAYING to the PAUSED state and call this method before continuing to render the remaining data. More...

Gst::ClockReturn	wait_clock (Gst::ClockTime time, Gst::ClockTimeDiff& jitter)
	This function will block until time is reached. More...

Gst::ClockReturn	wait_clock (Gst::ClockTime time)
	A wait_clock() convenience overload. More...

Gst::FlowReturn	wait (Gst::ClockTime time, Gst::ClockTimeDiff& jitter)
	This function will wait for preroll to complete and will then block until time is reached. More...

Gst::FlowReturn	wait (Gst::ClockTime time)
	A wait() convenience overload. More...

void	set_sync (bool sync)
	Configures sink to synchronize on the clock or not. More...

bool	get_sync () const
	Checks if sink is currently configured to synchronize against the clock. More...

void	set_max_lateness (gint64 max_lateness)
	Sets the new max lateness value to max_lateness. More...

gint64	get_max_lateness () const
	Gets the max lateness value. More...

void	set_qos_enabled (bool enabled)
	Configures sink to send Quality-of-Service events upstream. More...

bool	is_qos_enabled () const
	Checks if sink is currently configured to send Quality-of-Service events upstream. More...

void	set_async_enabled (bool enabled)
	Configures sink to perform all state changes asynchronously. More...

bool	is_async_enabled () const
	Checks if sink is currently configured to perform asynchronous state changes to PAUSED. More...

void	set_ts_offset (Gst::ClockTimeDiff offset)
	Adjust the synchronisation of sink with offset. More...

Gst::ClockTimeDiff	get_ts_offset () const
	Get the synchronisation offset of sink. More...

void	set_render_delay (Gst::ClockTime delay)
	Set the render delay in sink to delay. More...

Gst::ClockTime	get_render_delay () const
	Get the render delay of sink. More...

void	set_blocksize (guint blocksize)
	Set the number of bytes that the sink will pull when it is operating in pull mode. More...

guint	get_blocksize () const
	Get the number of bytes that the sink will pull when it is operating in pull mode. More...

guint64	get_throttle_time () const
	Get the time that will be inserted between frames to control the maximum buffers per second. More...

void	set_throttle_time (guint64 throttle)
	Set the time that will be inserted between rendered buffers. More...

Glib::RefPtr< Gst::Sample >	get_last_sample () const
	Get the last sample that arrived in the sink and was used for preroll or for rendering. More...

void	set_max_bitrate (guint64 max_bitrate)
	Set the maximum amount of bits per second that the sink will render. More...

guint64	get_max_bitrate () const
	Get the maximum amount of bits per second that the sink will render. More...

void	set_last_sample_enabled (bool enabled)
	Configures sink to store the last received sample in the last-sample property. More...

bool	is_last_sample_enabled () const
	Checks if sink is currently configured to store the last received sample in the last-sample property. More...

Glib::RefPtr< Gst::Pad >	get_sink_pad ()
	Gets the sink Gst::Pad object of the element. More...

Glib::RefPtr< const Gst::Pad >	get_sink_pad () const

Glib::PropertyProxy< bool >	property_async ()
	Go asynchronously to PAUSED. More...

Glib::PropertyProxy_ReadOnly< bool >	property_async () const
	Go asynchronously to PAUSED. More...

Glib::PropertyProxy< gint64 >	property_max_lateness ()
	Maximum number of nanoseconds that a buffer can be late before it is dropped (-1 unlimited). More...

Glib::PropertyProxy_ReadOnly< gint64 >	property_max_lateness () const
	Maximum number of nanoseconds that a buffer can be late before it is dropped (-1 unlimited). More...

Glib::PropertyProxy< bool >	property_qos ()
	Generate Quality-of-Service events upstream. More...

Glib::PropertyProxy_ReadOnly< bool >	property_qos () const
	Generate Quality-of-Service events upstream. More...

Glib::PropertyProxy< bool >	property_sync ()
	Sync on the clock. More...

Glib::PropertyProxy_ReadOnly< bool >	property_sync () const
	Sync on the clock. More...

Glib::PropertyProxy< gint64 >	property_ts_offset ()
	Timestamp offset in nanoseconds. More...

Glib::PropertyProxy_ReadOnly< gint64 >	property_ts_offset () const
	Timestamp offset in nanoseconds. More...

Glib::PropertyProxy< guint64 >	property_render_delay ()
	Additional render delay of the sink in nanoseconds. More...

Glib::PropertyProxy_ReadOnly< guint64 >	property_render_delay () const
	Additional render delay of the sink in nanoseconds. More...

Glib::PropertyProxy< guint64 >	property_throttle_time ()
	The time to keep between rendered buffers (0 = disabled). More...

Glib::PropertyProxy_ReadOnly< guint64 >	property_throttle_time () const
	The time to keep between rendered buffers (0 = disabled). More...

Glib::PropertyProxy< guint >	property_blocksize ()
	Size in bytes to pull per buffer (0 = default). More...

Glib::PropertyProxy_ReadOnly< guint >	property_blocksize () const
	Size in bytes to pull per buffer (0 = default). More...

Glib::PropertyProxy_ReadOnly< Glib::RefPtr< Gst::Sample > >	property_last_sample () const
	The last sample received in the sink. More...

Glib::PropertyProxy< bool >	property_enable_last_sample ()
	Enable the last-sample property. More...

Glib::PropertyProxy_ReadOnly< bool >	property_enable_last_sample () const
	Enable the last-sample property. More...

Glib::PropertyProxy< guint64 >	property_max_bitrate ()
	The maximum bits per second to render (0 = disabled). More...

Glib::PropertyProxy_ReadOnly< guint64 >	property_max_bitrate () const
	The maximum bits per second to render (0 = disabled). More...

virtual Glib::RefPtr< Gst::Caps >	get_caps_vfunc (const Glib::RefPtr< Gst::Caps >& caps) const
	Called to get sink pad caps from the subclass. More...

virtual bool	set_caps_vfunc (const Glib::RefPtr< Gst::Caps >& caps)
	Notify subclass of changed caps. More...

virtual void	get_times_vfunc (const Glib::RefPtr< Gst::Buffer >& buffer, Gst::ClockTime&start, Gst::ClockTime&end) const
	Called to get the start and end times for synchronising the passed buffer to the clock. More...

virtual bool	start_vfunc ()
	Start processing. More...

virtual bool	stop_vfunc ()
	Stop processing. More...

virtual bool	unlock_vfunc ()
	Unlock any pending access to the resource. More...

virtual bool	event_vfunc (const Glib::RefPtr< Gst::Event >& event)
	Override this to handle events arriving on the sink pad. More...

virtual FlowReturn	wait_event_vfunc (const Glib::RefPtr< Gst::Event >& event)
	Override this to implement custom logic to wait for the event time (for events like EOS and GAP). More...

virtual FlowReturn	preroll_vfunc (const Glib::RefPtr< Gst::Buffer >& buffer)
	Called to present the preroll buffer if desired. More...

virtual FlowReturn	render_vfunc (const Glib::RefPtr< Gst::Buffer >& buffer)
	Called when a buffer should be presented or output, at the correct moment if the Gst::BaseSink has been set to sync to the clock. More...

virtual bool	activate_pull_vfunc (bool active)
	Subclasses should override this when they need to perform special processing when changing to the PLAYING state asynchronously. More...

virtual Glib::RefPtr< Gst::Caps >	fixate_vfunc (const Glib::RefPtr< Gst::Caps >& caps)
	Only useful in pull mode, this vmethod will be called in response to Gst::Pad::fixate_caps() being called on the sink pad. More...

virtual bool	unlock_stop_vfunc ()
	Clear the previous unlock request. More...

virtual FlowReturn	render_list_vfunc (const Glib::RefPtr< Gst::BufferList >& buffer_list)
	Render a BufferList. More...

virtual FlowReturn	prepare_vfunc (const Glib::RefPtr< Gst::Buffer >& buffer)
	Called to prepare the buffer for render and preroll. More...

virtual FlowReturn	prepare_list_vfunc (const Glib::RefPtr< Gst::BufferList >& buffer_list)
	Called to prepare the buffer list for render_list. More...

virtual bool	base_sink_query_vfunc (const Glib::RefPtr< Gst::Query >&query)
	Perform a GstQuery on the element. More...

virtual bool	propose_allocation_vfunc (const Glib::RefPtr< Gst::Query >&query)
	Configure the allocation query. More...

Public Member Functions inherited from Gst::Element
	Element (Element&& src) noexcept

Element&	operator= (Element&& src) noexcept

	~Element () noexcept override

GstElement*	gobj ()
	Provides access to the underlying C GObject. More...

const GstElement*	gobj () const
	Provides access to the underlying C GObject. More...

GstElement*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

Glib::RefPtr< Gst::Element >	link (const Glib::RefPtr< Gst::Element >& dest)
	Links this source element to the dest element. More...

bool	add_pad (const Glib::RefPtr< Gst::Pad >& pad)
	Adds a pad (link point) to element. More...

void	create_all_pads ()
	Creates a pad for each pad template that is always available. More...

Glib::RefPtr< Gst::Pad >	create_compatible_pad (const Glib::RefPtr< const Gst::Pad >& pad, const Glib::RefPtr< const Gst::Caps >& caps)
	Looks for an unlinked pad to which the given pad can link. More...

Glib::RefPtr< Gst::PadTemplate >	get_compatible_pad_template (const Glib::RefPtr< const Gst::PadTemplate >& compattempl)
	Retrieves a pad template from element that is compatible with compattempl. More...

Glib::RefPtr< const Gst::PadTemplate >	get_compatible_pad_template (const Glib::RefPtr< const Gst::PadTemplate >& compattempl) const
	Retrieves a pad template from element that is compatible with compattempl. More...

Glib::RefPtr< Gst::Pad >	get_request_pad (const Glib::ustring& name)
	Retrieves a pad from the element by name (e.g. "src_\\%d"). More...

Glib::RefPtr< Gst::Pad >	request_pad (const Glib::RefPtr< Gst::PadTemplate >& templ, const Glib::ustring& name, const Glib::RefPtr< const Gst::Caps >& caps)
	Retrieves a request pad from the element according to the provided template. More...

Glib::RefPtr< Gst::Pad >	request_pad (const Glib::RefPtr< Gst::PadTemplate >& templ, const Glib::ustring& name)
	A request_pad() convenience overload. More...

Glib::RefPtr< Gst::Pad >	request_pad (const Glib::RefPtr< Gst::PadTemplate >& templ, const Glib::RefPtr< const Gst::Caps >& caps)
	A request_pad() convenience overload. More...

Glib::RefPtr< Gst::Pad >	request_pad (const Glib::RefPtr< Gst::PadTemplate >& templ)
	A request_pad() convenience overload. More...

Glib::RefPtr< Gst::Pad >	get_static_pad (const Glib::ustring& name)
	Retrieves a pad from element by name. More...

Glib::RefPtr< const Gst::Pad >	get_static_pad (const Glib::ustring& name) const
	Retrieves a pad from element by name. More...

void	no_more_pads ()
	Use this function to signal that the element does not expect any more pads to show up in the current pipeline. More...

void	release_request_pad (const Glib::RefPtr< Gst::Pad >& pad)
	Makes the element free the previously requested pad as obtained with get_request_pad(). More...

bool	remove_pad (const Glib::RefPtr< Gst::Pad >& pad)
	Removes pad from element. More...

Gst::Iterator< Gst::Pad >	iterate_pads ()
	Retrieves an iterator of element's pads. More...

Gst::Iterator< const Gst::Pad >	iterate_pads () const
	Retrieves an iterator of element's pads. More...

Gst::Iterator< Gst::Pad >	iterate_sink_pads ()
	Retrieves an iterator of element's sink pads. More...

Gst::Iterator< const Gst::Pad >	iterate_sink_pads () const
	Retrieves an iterator of element's sink pads. More...

Gst::Iterator< Gst::Pad >	iterate_src_pads ()
	Retrieves an iterator of element's source pads. More...

Gst::Iterator< const Gst::Pad >	iterate_src_pads () const
	Retrieves an iterator of element's source pads. More...

void	unlink (const Glib::RefPtr< Gst::Element >& dest)
	Unlinks all source pads of the source element with all sink pads of the sink element to which they are linked. More...

void	set_context (const Glib::RefPtr< Gst::Context >& context)
	Sets the context of the element. More...

bool	link_pads (const Glib::ustring& srcpadname, const Glib::RefPtr< Gst::Element >& dest, const Glib::ustring& destpadname)
	Links the two named pads of the source and destination elements. More...

void	unlink_pads (const Glib::ustring& srcpadname, const Glib::RefPtr< Gst::Element >& dest, const Glib::ustring& destpadname)
	Unlinks the two named pads of the source and destination elements. More...

bool	link_pads (const Glib::ustring& srcpadname, const Glib::RefPtr< Gst::Element >& dest, const Glib::ustring& destpadname, const Glib::RefPtr< Gst::Caps >& filter)
	Links the two named pads of the source and destination elements. More...

bool	link_pads (const Glib::ustring& srcpadname, const Glib::RefPtr< Gst::Element >& dest, const Glib::ustring& destpadname, PadLinkCheck flags)
	Links the two named pads of the source and destination elements. More...

Glib::RefPtr< Gst::Element >	link (const Glib::RefPtr< Gst::Element >& dest, const Glib::RefPtr< Gst::Caps >& filter)
	Links src to dest using the given caps as filtercaps. More...

void	set_base_time (ClockTime time)
	Set the base time of an element. More...

ClockTime	get_base_time () const
	Returns the base time of the element. More...

void	set_start_time (Gst::ClockTime time)
	Set the start time of an element. More...

Gst::ClockTime	get_start_time () const
	Returns the start time of the element. More...

void	set_bus (const Glib::RefPtr< Gst::Bus >& bus)
	Sets the bus of the element. More...

Glib::RefPtr< Gst::Bus >	get_bus ()
	Returns the bus of the element. More...

Glib::RefPtr< const Gst::Bus >	get_bus () const
	Returns the bus of the element. More...

Glib::RefPtr< Gst::ElementFactory >	get_factory ()
	Retrieves the factory that was used to create this element. More...

Glib::RefPtr< const Gst::ElementFactory >	get_factory () const
	Retrieves the factory that was used to create this element. More...

bool	set_clock (const Glib::RefPtr< Gst::Clock >& clock)
	Sets the clock for the element. More...

Glib::RefPtr< Gst::Clock >	get_clock ()
	Gets the currently configured clock of the element. More...

Glib::RefPtr< const Gst::Clock >	get_clock () const
	Gets the currently configured clock of the element. More...

Glib::RefPtr< Gst::Clock >	provide_clock ()
	Get the clock provided by the given element. More...

Glib::RefPtr< const Gst::Clock >	provide_clock () const
	Get the clock provided by the given element. More...

StateChangeReturn	set_state (State state)
	Sets the state of the element. More...

StateChangeReturn	get_state (State& state, State& pending, ClockTime timeout) const
	Gets the state of the element. More...

bool	set_locked_state (gboolean locked_state)
	Locks the state of an element, so state changes of the parent don't affect this element anymore. More...

bool	is_locked_state () const
	Checks if the state of an element is locked. More...

void	abort_state ()
	Abort the state change of the element. More...

StateChangeReturn	continue_state (StateChangeReturn ret)
	Commit the state change of the element and proceed to the next pending state if any. More...

void	lost_state ()
	Brings the element to the lost state. More...

bool	sync_state_with_parent ()
	Tries to change the state of the element to the same as its parent. More...

StateChangeReturn	change_state (StateChange transition)
	Perform transition on element. More...

void	post_message (int code, int line, MessageType type=Gst::MESSAGE_INFO, const Glib::QueryQuark& domain=get_core_error_quark(), const Glib::ustring& text=Glib::ustring(), const Glib::ustring& debug=Glib::ustring(), const Glib::ustring& file=Glib::ustring(), const Glib::ustring& function=Glib::ustring())
	Post an error, warning or info message on the bus from inside an element. More...

bool	post_message (Glib::RefPtr< Gst::Message >&& message)
	Post a message on the element's Gst::Bus. More...

bool	query (const Glib::RefPtr< Gst::Query >& query) const
	Performs a query on the given element. More...

bool	query_convert (Gst::Format src_format, gint64 src_val, Format dest_format, gint64& dest_val) const
	Queries an element to convert src_val in src_format to dest_format. More...

bool	query_position (Gst::Format format, gint64& cur) const
	Queries an element (usually top-level pipeline or playbin element) for the stream position in nanoseconds. More...

bool	query_position (Gst::Format format) const
	A query_position() convenience overload. More...

bool	query_duration (Gst::Format format, gint64& duration) const
	Queries an element (usually top-level pipeline or playbin element) for the total stream duration in nanoseconds. More...

bool	query_duration (Gst::Format format) const
	A query_duration() convenience overload. More...

bool	seek (Format format, SeekFlags seek_flags, gint64 seek_pos)
	Simple API to perform a seek on the given element, meaning it just seeks to the given position relative to the start of the stream. More...

bool	seek (double rate, Format format, SeekFlags flags, SeekType cur_type, gint64 cur, SeekType stop_type, gint64 stop)
	Sends a seek event to an element. More...

bool	send_event (Glib::RefPtr< Gst::Event >&& event)
	Sends an event to an element. More...

bool	send_event (const Glib::RefPtr< Gst::Event >& event)
	A send_event() convenience overload. Allows to re-use event parameter after function call. More...

Glib::RefPtr< Gst::Context >	get_context (const Glib::ustring& context_type)
	Gets the context with context_type set on the element or `nullptr`. More...

Glib::RefPtr< Gst::Context >	get_context_unlocked (const Glib::ustring& context_type)
	Gets the context with context_type set on the element or `nullptr`. More...

std::vector< Glib::RefPtr< Gst::Context > >	get_contexts ()
	Gets the contexts set on the element. More...

Glib::SignalProxy< void >	signal_no_more_pads ()

Glib::SignalProxy< void, const Glib::RefPtr< Gst::Pad >&>	signal_pad_added ()

Glib::SignalProxy< void, const Glib::RefPtr< Gst::Pad >&>	signal_pad_removed ()

virtual void	release_pad_vfunc (const Glib::RefPtr< Gst::Pad >& pad)
	Called when a request pad is to be released. More...

virtual Glib::RefPtr< Gst::Pad >	request_new_pad_vfunc (Glib::RefPtr< Gst::PadTemplate > templ, const Glib::ustring& name, const Glib::RefPtr< const Gst::Caps >& caps)
	Called when a new pad is requested. More...

virtual StateChangeReturn	get_state_vfunc (State& state, State& pending, ClockTime timeout) const
	Get the state of the element. More...

virtual StateChangeReturn	set_state_vfunc (State state)
	Set a new state on the element. More...

virtual StateChangeReturn	change_state_vfunc (StateChange transition)
	Called by set_state to perform an incremental state change. More...

virtual void	state_changed_vfunc (Gst::State oldstate, Gst::State newstate, Gst::State pending)
	Called immediately after a new state was set. More...

virtual void	set_bus_vfunc (const Glib::RefPtr< Gst::Bus >& bus)
	Set a Gst::Bus on the element. More...

virtual Glib::RefPtr< Gst::Clock >	provide_clock_vfunc ()
	Gets the Gst::Clock provided by the element. More...

virtual bool	set_clock_vfunc (const Glib::RefPtr< Gst::Clock >& clock)
	Set the Gst::Clock on the element. More...

virtual bool	send_event_vfunc (const Glib::RefPtr< Gst::Event >& event)
	Send a Gst::Event to the element. More...

virtual bool	query_vfunc (const Glib::RefPtr< Gst::Query >&query) const
	Perform a Gst::Query on the element. More...

virtual void	set_context_vfunc (const Glib::RefPtr< Gst::Context >& context)
	Set a Gst::Context on the element. More...

virtual bool	post_message_vfunc (const Glib::RefPtr< Gst::Message >& message)
	Called when a message is posted on the element. More...

Glib::RefPtr< Gst::PadTemplate >	get_pad_template (const Glib::ustring& factory_name) const

template<typename T >
Glib::RefPtr< Gst::Element >	property (const Glib::ustring& name, const T& value)
	Sets specified property. More...

Public Member Functions inherited from Gst::Object
	Object (Object&& src) noexcept

Object&	operator= (Object&& src) noexcept

	~Object () noexcept override

GstObject*	gobj ()
	Provides access to the underlying C GObject. More...

const GstObject*	gobj () const
	Provides access to the underlying C GObject. More...

GstObject*	gobj_copy ()
	Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs. More...

bool	is_element () const

bool	is_element_factory () const

bool	is_pad () const

bool	is_pad_template () const

bool	is_bin () const

guint32	get_flags () const
	Returns the entire set of flags for the object. More...

bool	set_name (const Glib::ustring& name)
	Sets the name of object, or gives object a guaranteed unique name (if name is `nullptr`). More...

Glib::ustring	get_name () const
	Returns a copy of the name of object. More...

bool	set_parent (const Glib::RefPtr< Gst::Object >& parent)
	Sets the parent of object to parent. More...

Glib::RefPtr< Gst::Object >	get_parent ()
	Returns the parent of object. More...

Glib::RefPtr< const Gst::Object >	get_parent () const
	Returns the parent of object. More...

void	unparent ()
	Clear the parent of object, removing the associated reference. More...

void	set_control_rate (Gst::ClockTime control_rate)
	Change the control-rate for this object. More...

Gst::ClockTime	get_control_rate () const
	Obtain the control-rate for this object. More...

Gst::ClockTime	suggest_next_sync () const
	Returns a suggestion for timestamps where buffers should be split to get best controller results. More...

bool	sync_values (Gst::ClockTime timestamp)
	Sets the properties of the object, according to the Gst::ControlSources that (maybe) handle them and for the given timestamp. More...

void	set_control_bindings_disabled (bool disabled)
	This function is used to disable all controlled properties of the object for some time, i.e. sync_values() will do nothing. More...

bool	has_asctive_control_bindings () const
	Check if the object has an active controlled properties. More...

bool	has_ancestor (const Glib::RefPtr< const Gst::Object >& ancestor) const
	Check if object has an ancestor ancestor somewhere up in the hierarchy. More...

bool	has_as_ancestor (const Glib::RefPtr< Gst::Object >& ancestor) const
	Check if object has an ancestor ancestor somewhere up in the hierarchy. More...

bool	has_as_parent (const Glib::RefPtr< Gst::Object >& parent) const
	Check if parent is the parent of object. More...

Glib::ustring	get_path_string ()
	Generates a string describing the path of object in the object hierarchy. More...

Glib::PropertyProxy< Glib::ustring >	property_name ()
	The name of the object. More...

Glib::PropertyProxy_ReadOnly< Glib::ustring >	property_name () const
	The name of the object. More...

Glib::PropertyProxy< Glib::RefPtr< Gst::Object > >	property_parent ()
	The parent of the object. More...

Glib::PropertyProxy_ReadOnly< Glib::RefPtr< Gst::Object > >	property_parent () const
	The parent of the object. More...

Glib::SignalProxy< void, const Glib::RefPtr< Gst::Object >&, GParamSpec*>	signal_deep_notify ()

int	get_refcount () const

Static Public Member Functions
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

Static Public Member Functions inherited from Gst::BaseSink
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

Static Public Member Functions inherited from Gst::Element
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

Static Public Member Functions inherited from Gst::Object
static GType	get_type ()
	Get the GType for this class, for use with the underlying GObject type system. More...

static bool	check_uniqueness (const Glib::ListHandle< const Gst::Object >& list, const Glib::ustring& name)
	Checks to see if there is any object named name in list. More...

Related Functions
(Note that these are not member functions.)
Glib::RefPtr< Gst::AudioBaseSink >	wrap (GstAudioBaseSink* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Related Functions inherited from Gst::BaseSink
Glib::RefPtr< Gst::BaseSink >	wrap (GstBaseSink* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Related Functions inherited from Gst::Element
Glib::RefPtr< Gst::Element >	wrap (GstElement* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Related Functions inherited from Gst::Object
Glib::RefPtr< Gst::Object >	wrap (GstObject* object, bool take_copy=false)
	A Glib::wrap() method for this object. More...

Additional Inherited Members
Protected Member Functions inherited from Gst::Element
virtual void	on_no_more_pads ()
	This is a default handler for the signal signal_no_more_pads(). More...

virtual void	on_pad_added (const Glib::RefPtr< Gst::Pad >& new_pad)
	This is a default handler for the signal signal_pad_added(). More...

virtual void	on_pad_removed (const Glib::RefPtr< Gst::Pad >& old_pad)
	This is a default handler for the signal signal_pad_removed(). More...

Protected Member Functions inherited from Gst::Object
virtual void	on_deep_notify (const Glib::RefPtr< Gst::Object >& prop_object, GParamSpec* prop)
	This is a default handler for the signal signal_deep_notify(). More...

Detailed Description

The base class for audio sinks.

This is the base class for audio sinks. Subclasses need to implement the create_ringbuffer_vfunc vmethod. This base class will then take care of writing samples to the audioringbuffer, synchronisation, clipping and flushing.

Last reviewed on 2016-04-23 (1.8.0).

Member Typedef Documentation

◆ SlotCustomSlaving

typedef sigc::slot<void, const Glib::RefPtr<Gst::AudioBaseSink>&, Gst::ClockTime, Gst::ClockTime, Gst::ClockTimeDiff&, Gst::AudioBaseSinkDiscontReason> Gst::AudioBaseSink::SlotCustomSlaving

This slot is set with set_custom_slaving_callback() and is called during playback.

It receives the current time of external and internal clocks, which the callback can then use to apply any custom slaving/synchronization schemes.

The external clock is the sink's element clock, the internal one is the internal audio clock. The internal audio clock's calibration is applied to the timestamps before they are passed to the callback. The difference between etime and itime is the skew; how much internal and external clock lie apart from each other. A skew of 0 means both clocks are perfectly in sync. itime > etime means the external clock is going slower, while itime < etime means it is going faster than the internal clock. etime and itime are always valid timestamps, except for when a discontinuity happens.

requested_skew is an output value the callback can write to. It informs the sink of whether or not it should move the playout pointer, and if so, by how much. This pointer is only nullptr if a discontinuity occurs; otherwise, it is safe to write to *requested_skew. The default skew is 0.

The sink may experience discontinuities. If one happens, discont is TRUE, itime, etime are set to CLOCK_TIME_NONE, and requested_skew is nullptr. This makes it possible to reset custom clock slaving algorithms when a discontinuity happens.

Constructor & Destructor Documentation

◆ AudioBaseSink()

Gst::AudioBaseSink::AudioBaseSink ( AudioBaseSink&& src )

noexcept

◆ ~AudioBaseSink()

Gst::AudioBaseSink::~AudioBaseSink ( )

overridenoexcept

Member Function Documentation

◆ create_ring_buffer()

Glib::RefPtr<Gst::AudioRingBuffer> Gst::AudioBaseSink::create_ring_buffer ( )

Create and return the Gst::AudioRingBuffer for sink.

This function will call the ::create_ringbuffer vmethod and will set sink as the parent of the returned buffer (see Gst::Object::set_parent()).

Returns: The new ringbuffer of sink.

◆ create_ring_buffer_vfunc()

virtual Glib::RefPtr<Gst::AudioRingBuffer> Gst::AudioBaseSink::create_ring_buffer_vfunc ( )

virtual

vfunc to create and return a Gst::AudioRingBuffer to write to.

◆ get_alignment_threshold()

Gst::ClockTime Gst::AudioBaseSink::get_alignment_threshold ( ) const

Get the current alignment threshold, in nanoseconds, used by sink.

Returns: The current alignment threshold used by sink.

◆ get_discont_wait()

Gst::ClockTime Gst::AudioBaseSink::get_discont_wait ( ) const

Get the current discont wait, in nanoseconds, used by sink.

Returns: The current discont wait used by sink.

◆ get_drift_tolerance()

gint64 Gst::AudioBaseSink::get_drift_tolerance ( ) const

Get the current drift tolerance, in microseconds, used by sink.

Returns: The current drift tolerance used by sink.

◆ get_provide_clock()

bool Gst::AudioBaseSink::get_provide_clock ( ) const

Queries whether sink will provide a clock or not.

See also gst_audio_base_sink_set_provide_clock.

Returns: true if sink will provide a clock.

◆ get_provided_clock() [1/2]

Glib::RefPtr<Gst::Clock> Gst::AudioBaseSink::get_provided_clock ( )

Get the Gst::Clock of the Gst::AudioBaseSink.

◆ get_provided_clock() [2/2]

Glib::RefPtr<const Gst::Clock> Gst::AudioBaseSink::get_provided_clock ( ) const

◆ get_slave_method()

Gst::AudioBaseSinkSlaveMethod Gst::AudioBaseSink::get_slave_method ( ) const

Get the current slave method used by sink.

Returns: The current slave method used by sink.

◆ get_type()

static GType Gst::AudioBaseSink::get_type ( )

static

Get the GType for this class, for use with the underlying GObject type system.

◆ gobj() [1/2]

GstAudioBaseSink* Gst::AudioBaseSink::gobj ( )

inline

Provides access to the underlying C GObject.

◆ gobj() [2/2]

const GstAudioBaseSink* Gst::AudioBaseSink::gobj ( ) const

inline

Provides access to the underlying C GObject.

◆ gobj_copy()

GstAudioBaseSink* Gst::AudioBaseSink::gobj_copy ( )

Provides access to the underlying C instance. The caller is responsible for unrefing it. Use when directly setting fields in structs.

◆ operator=()

AudioBaseSink& Gst::AudioBaseSink::operator= ( AudioBaseSink&& src )

noexcept

◆ payload_vfunc()

virtual Glib::RefPtr<Gst::Buffer> Gst::AudioBaseSink::payload_vfunc ( const Glib::RefPtr< Gst::Buffer >& buffer )

virtual

vfunc to payload data in a format suitable to write to the sink.

If no payloading is required, returns a reffed copy of the original buffer, else returns the payloaded buffer with all other metadata copied.

◆ property_alignment_threshold() [1/2]

Glib::PropertyProxy< guint64 > Gst::AudioBaseSink::property_alignment_threshold ( )

Timestamp alignment threshold in nanoseconds.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_alignment_threshold() [2/2]

Glib::PropertyProxy_ReadOnly< guint64 > Gst::AudioBaseSink::property_alignment_threshold ( ) const

Timestamp alignment threshold in nanoseconds.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_buffer_time() [1/2]

Glib::PropertyProxy< gint64 > Gst::AudioBaseSink::property_buffer_time ( )

Size of audio buffer in microseconds, this is the minimum latency that the sink reports.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_buffer_time() [2/2]

Glib::PropertyProxy_ReadOnly< gint64 > Gst::AudioBaseSink::property_buffer_time ( ) const

Size of audio buffer in microseconds, this is the minimum latency that the sink reports.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_can_activate_pull() [1/2]

Glib::PropertyProxy< bool > Gst::AudioBaseSink::property_can_activate_pull ( )

Allow pull-based scheduling.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_can_activate_pull() [2/2]

Glib::PropertyProxy_ReadOnly< bool > Gst::AudioBaseSink::property_can_activate_pull ( ) const

Allow pull-based scheduling.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_discont_wait() [1/2]

Glib::PropertyProxy< guint64 > Gst::AudioBaseSink::property_discont_wait ( )

Window of time in nanoseconds to wait before creating a discontinuity.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_discont_wait() [2/2]

Glib::PropertyProxy_ReadOnly< guint64 > Gst::AudioBaseSink::property_discont_wait ( ) const

Window of time in nanoseconds to wait before creating a discontinuity.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_drift_tolerance() [1/2]

Glib::PropertyProxy< gint64 > Gst::AudioBaseSink::property_drift_tolerance ( )

Tolerance for clock drift in microseconds.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_drift_tolerance() [2/2]

Glib::PropertyProxy_ReadOnly< gint64 > Gst::AudioBaseSink::property_drift_tolerance ( ) const

Tolerance for clock drift in microseconds.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_latency_time() [1/2]

Glib::PropertyProxy< gint64 > Gst::AudioBaseSink::property_latency_time ( )

The minimum amount of data to write in each iteration in microseconds.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_latency_time() [2/2]

Glib::PropertyProxy_ReadOnly< gint64 > Gst::AudioBaseSink::property_latency_time ( ) const

The minimum amount of data to write in each iteration in microseconds.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_provide_clock() [1/2]

Glib::PropertyProxy< bool > Gst::AudioBaseSink::property_provide_clock ( )

Provide a clock to be used as the global pipeline clock.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_provide_clock() [2/2]

Glib::PropertyProxy_ReadOnly< bool > Gst::AudioBaseSink::property_provide_clock ( ) const

Provide a clock to be used as the global pipeline clock.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ property_slave_method() [1/2]

Glib::PropertyProxy< Gst::AudioBaseSinkSlaveMethod > Gst::AudioBaseSink::property_slave_method ( )

Algorithm used to match the rate of the masterclock.

Returns: A PropertyProxy that allows you to get or set the value of the property, or receive notification when the value of the property changes.

◆ property_slave_method() [2/2]

Glib::PropertyProxy_ReadOnly< Gst::AudioBaseSinkSlaveMethod > Gst::AudioBaseSink::property_slave_method ( ) const

Algorithm used to match the rate of the masterclock.

Returns: A PropertyProxy_ReadOnly that allows you to get the value of the property, or receive notification when the value of the property changes.

◆ report_device_failure()

void Gst::AudioBaseSink::report_device_failure ( )

Informs this base class that the audio output device has failed for some reason, causing a discontinuity (for example, because the device recovered from the error, but lost all contents of its ring buffer).

This function is typically called by derived classes, and is useful for the custom slave method.

◆ set_alignment_threshold()

void Gst::AudioBaseSink::set_alignment_threshold ( Gst::ClockTime alignment_threshold )

Controls the sink's alignment threshold.

Parameters

alignment_threshold The new alignment threshold in nanoseconds.

◆ set_custom_slaving_callback()

void Gst::AudioBaseSink::set_custom_slaving_callback ( const SlotCustomSlaving& slot )

Sets the custom slaving callback.

This callback will be invoked if the slave-method property is set to GST_AUDIO_BASE_SINK_SLAVE_CUSTOM and the audio sink receives and plays samples.

Setting the callback to nullptr causes the sink to behave as if the GST_AUDIO_BASE_SINK_SLAVE_NONE method were used.

Parameters

slot	A Gst::SlotAudioBaseSinkCustomSlaving.
user_data	User data passed to the callback.
notify	Called when user_data becomes unused.

◆ set_discont_wait()

void Gst::AudioBaseSink::set_discont_wait ( Gst::ClockTime discont_wait )

Controls how long the sink will wait before creating a discontinuity.

Parameters

discont_wait The new discont wait in nanoseconds.

◆ set_drift_tolerance()

void Gst::AudioBaseSink::set_drift_tolerance ( gint64 drift_tolerance )

Controls the sink's drift tolerance.

Parameters

drift_tolerance The new drift tolerance in microseconds.

◆ set_provide_clock()

void Gst::AudioBaseSink::set_provide_clock ( bool provide )

Controls whether sink will provide a clock or not.

If provide is true, Gst::Element::provide_clock() will return a clock that reflects the datarate of sink. If provide is false, Gst::Element::provide_clock() will return nullptr.

Parameters

provide New state.

◆ set_slave_method()

void Gst::AudioBaseSink::set_slave_method ( Gst::AudioBaseSinkSlaveMethod method )

Controls how clock slaving will be performed in sink.

Parameters

method The new slave method.

Friends And Related Function Documentation

◆ wrap()

Glib::RefPtr< Gst::AudioBaseSink > wrap	(	GstAudioBaseSink *	object,
		bool	take_copy = `false`
	)

Parameters

object	The C instance.
take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns: A C++ instance that wraps this C instance.

Public Types

Public Member Functions

Static Public Member Functions

Related Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ SlotCustomSlaving

Constructor & Destructor Documentation

◆ AudioBaseSink()

◆ ~AudioBaseSink()

Member Function Documentation

◆ create_ring_buffer()

◆ create_ring_buffer_vfunc()

◆ get_alignment_threshold()

◆ get_discont_wait()

◆ get_drift_tolerance()

◆ get_provide_clock()

◆ get_provided_clock() [1/2]

◆ get_provided_clock() [2/2]

◆ get_slave_method()

◆ get_type()

◆ gobj() [1/2]

◆ gobj() [2/2]

◆ gobj_copy()

◆ operator=()

◆ payload_vfunc()

◆ property_alignment_threshold() [1/2]

◆ property_alignment_threshold() [2/2]

◆ property_buffer_time() [1/2]

◆ property_buffer_time() [2/2]

◆ property_can_activate_pull() [1/2]

◆ property_can_activate_pull() [2/2]

◆ property_discont_wait() [1/2]

◆ property_discont_wait() [2/2]

◆ property_drift_tolerance() [1/2]

◆ property_drift_tolerance() [2/2]

◆ property_latency_time() [1/2]

◆ property_latency_time() [2/2]

◆ property_provide_clock() [1/2]

◆ property_provide_clock() [2/2]

◆ property_slave_method() [1/2]

◆ property_slave_method() [2/2]

◆ report_device_failure()

◆ set_alignment_threshold()

◆ set_custom_slaving_callback()

◆ set_discont_wait()

◆ set_drift_tolerance()

◆ set_provide_clock()

◆ set_slave_method()

Friends And Related Function Documentation

◆ wrap()
